FenceTrac’s Enclosures system is designed for exactly this application. It uses the same G90 galvanized steel frame and infill options as the standard FenceTrac fence system, but configured specifically for dumpster corrals, trash enclosures, and utility screening. The system includes heavy-duty posts, double gate openings up to 12 feet wide for front-load dumpster service, and the same powder-coated finish and 20-year warranty that apply to the full fence product line.
The Short Answer
Yes. FenceTrac manufactures a dedicated Enclosures system for dumpster corrals and utility screening. It uses the same frame, infill, and finish options as FenceTrac privacy fencing, with heavy-duty posts and gate widths sized for dumpster truck access. Available heights are 4, 6, and 8 feet. The system is available with LuxeCore composite, UltraBlend PVC, aluminum, or cedar infill.
Why FenceTrac for Dumpster Enclosures
Dumpster corrals take more abuse than any other fence application on a commercial property. The enclosure gets hit by dumpster trucks during pickup and delivery, exposed to grease and waste runoff, baked in direct sun, and ignored until something breaks. Most wood enclosures deteriorate within a few years. Vinyl panels crack on impact. Chain link provides zero screening.
FenceTrac’s steel-frame construction handles this environment because the structural load is carried by the galvanized steel channels and heavy-duty posts, not by the infill boards. A dumpster truck bumps the enclosure, and the steel frame absorbs the impact. The infill boards stay locked in the channels. There is no individual picket to knock loose and no rail joint to split.
Enclosure Components and Sizing
A standard FenceTrac dumpster corral consists of three wall panels and a gate opening on the service side. The system is modular, so the enclosure can be configured as a three-sided corral against an existing building wall, a four-sided standalone enclosure, or an L-shaped configuration for sites with multiple dumpsters.
Heights
FenceTrac enclosures are available at 4, 6, and 8 feet. Most municipalities require dumpster enclosures to be tall enough to screen the dumpster from public view. A standard front-load dumpster is approximately 6 feet tall with the lid closed, so 6-foot and 8-foot enclosure heights are the most common for code compliance.
Gate Options
Gate access is critical for dumpster enclosures because the waste hauler needs a clear opening wide enough to service the dumpster. FenceTrac offers double gates at 8-foot or 12-foot widths to accommodate standard front-load trucks. Double gates include a commercial drop rod that secures the inactive leaf when the gate is closed.
For enclosures that need automated access, cantilever slide gates are available for commercial applications with openings up to 32 feet wide. Custom steel welded gates are also an option for non-standard configurations.
Posts
Enclosures use heavy-duty posts to handle the lateral loads from gate operation and incidental contact during dumpster service. The 3-inch and 4-inch post sizes are standard for enclosure applications. The 4-inch post is recommended for double gate openings and any configuration where the gate leaf is large or heavy.
Infill Options for Dumpster Corrals
Every FenceTrac infill product works in the Enclosures system. The choice depends on the property’s appearance standards, budget, and any local code requirements.
LuxeCore aluminum-core composite is the premium option. It resists impact, moisture, UV, and staining. For commercial properties where the dumpster enclosure is visible from the street, parking lot, or tenant areas, LuxeCore provides a clean appearance that holds up without maintenance. LuxeCore and UltraBlend infill carry a Limited Lifetime Warranty.
UltraBlend PVC delivers a similar look at a lower price point. It resists moisture and UV exposure and requires no painting or staining. UltraBlend is a practical choice for properties where the enclosure needs to look presentable but is not a primary design feature.
Aluminum infill is the strongest option and the only infill that qualifies for fire-rated enclosure applications. For properties where fire code requires a fire-rated enclosure near an occupied building, the aluminum infill with the FenceTrac steel frame carries an ASTM E84-24 Class A fire rating with a Flame Spread Index of 0.
Cedar infill is available but is not recommended for dumpster enclosures. Cedar requires maintenance (staining or sealing), carries no warranty, and is more susceptible to moisture damage in the high-exposure environment around a dumpster pad.
Common Dumpster Enclosure Design Configurations
The modular frame system lets property owners and contractors configure the enclosure to fit the site rather than forcing the site to fit a prefabricated enclosure kit.

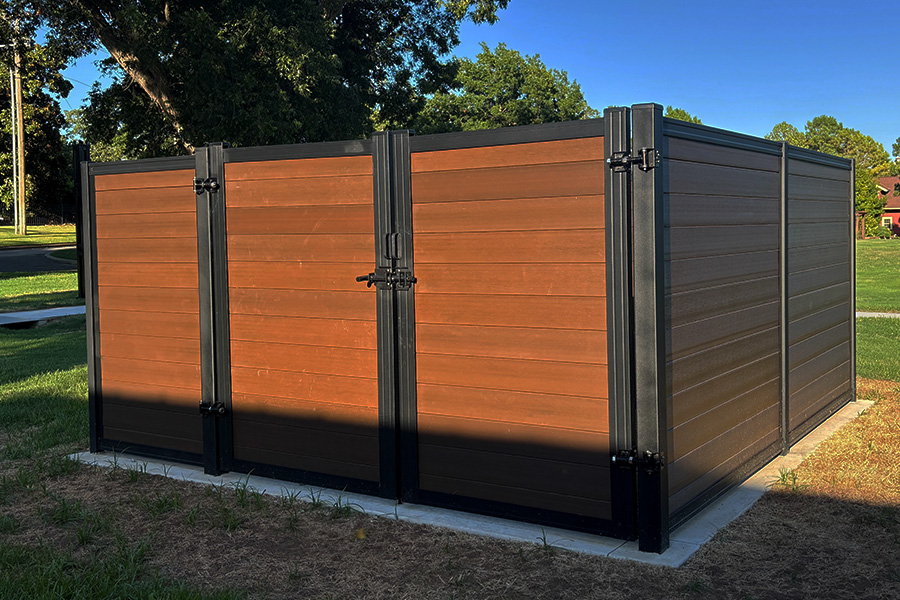

A standard three-sided corral with a double gate on the front is the most common layout. The three wall panels mount to heavy-duty corner posts, and the gate attaches to the end posts of the front opening. This configuration works for single-dumpster pads where one side backs up to a building wall or property line.
A four-sided standalone enclosure adds a rear wall panel. This is typical for dumpster pads in parking lots or open areas where screening is needed on all sides. The rear wall also prevents wind from blowing loose debris out of the corral.
For multi-dumpster sites (common at shopping centers, apartment complexes, and commercial kitchens), the FenceTrac system can be extended to create wider enclosures or paired side-by-side corrals with shared wall panels between them. This modular approach keeps material costs down compared to building two completely independent enclosures.
Related Questions
How tall does a dumpster enclosure need to be? Most codes require the enclosure to fully screen the dumpster from public view. A 6-foot enclosure screens a standard front-load dumpster with the lid closed. An 8-foot enclosure screens it with the lid open during service.
Do I need a fire-rated fence around a dumpster enclosure? In many jurisdictions, yes. The IBC and IFC require fire-rated separation when a dumpster enclosure is within a specified distance of an occupied building. FenceTrac’s aluminum infill configuration meets the ASTM E84-24 Class A standard.
What is the best material for a commercial equipment enclosure? The same FenceTrac Enclosures system used for dumpster corrals also works for HVAC screening, generator enclosures, and other utility equipment. The frame and gate options are the same; only the enclosure dimensions change.
See Also
Dumpster enclosure fencing for a detailed look at commercial screening requirements and design options. Watch FenceTrac assembly videos for a visual walkthrough of the frame and gate assembly process.
