FenceTrac single gate kits are available in two standard widths: 4 feet and 6 feet. Both gate kits are built with an aluminum frame that accepts the same infill boards used in the adjacent fence panels, so the gate matches the rest of the fence line in material, color, and texture. Each kit includes stainless steel hinges and a lockable latch, and the gate is available in the same heights as the FenceTrac fence system: 4-foot, 6-foot, and 8-foot configurations.
The Short Answer
FenceTrac manufactures two standard single gate widths.
| Gate Type | Width | Frame Material | Hardware Included |
|---|---|---|---|
| Single gate (standard) | 4 feet | Aluminum | Stainless steel hinges, lockable latch |
| Single gate (wide) | 6 feet | Aluminum | Stainless steel hinges, lockable latch |
Both sizes accept the same infill as the fence panels: LuxeCore aluminum-core composite, UltraBlend PVC, aluminum boards, cedar, or any rigid infill up to 1 inch thick.
When to Choose a 4-Foot Gate
The 4-foot single gate is the standard pedestrian gate width. It fits comfortably in most residential side yards, backyard entries, and garden access points.
A 4-foot opening provides enough clearance for a person walking through with a trash can, wheelbarrow, or lawn mower. It is the most common gate width for residential privacy fence installations where the gate serves foot traffic only.
For pool fence applications, the 4-foot gate pairs with optional self-closing, pool-compliant hardware that meets code requirements for automatic closure and positive latching.
When to Choose a 6-Foot Gate
The 6-foot single gate provides a wider opening for applications where the standard 4-foot width is too narrow.
Common uses include side yard access for riding mowers, ATVs, or large equipment, entry points where two people need to pass at the same time, and openings that serve as both pedestrian and light utility access. The 6-foot width also works well for enclosure gates where dumpster service or utility access requires a wider single-swing opening.
If the opening needs to be wider than 6 feet, a double gate configuration in 8-foot or 12-foot width is the better choice.
Gate Design and Infill Matching
One of the advantages of the FenceTrac gate system is that the gate infill matches the fence. The aluminum gate frame accepts the same boards that slide into the galvanized G90 steel, powder-coated fence frame.
This means a fence built with LuxeCore composite infill has a gate filled with the same LuxeCore composite boards, in the same color and texture. The same applies to UltraBlend PVC, aluminum, and cedar infill. The result is a consistent both-sided design across the entire fence line, including the gate.
The gate frame itself is powder-coated to match the fence frame color. Standard color options are Black, Bronze, White, and Silver.
Hardware and Accessories
Every standard FenceTrac single gate kit ships with stainless steel hinges and a lockable latch. These are the base hardware components included with the gate.
Optional hardware upgrades include self-closing hinges for pool-compliant installations. Self-closing hardware meets building code requirements that mandate automatic gate closure and positive latching around swimming pools and spas.

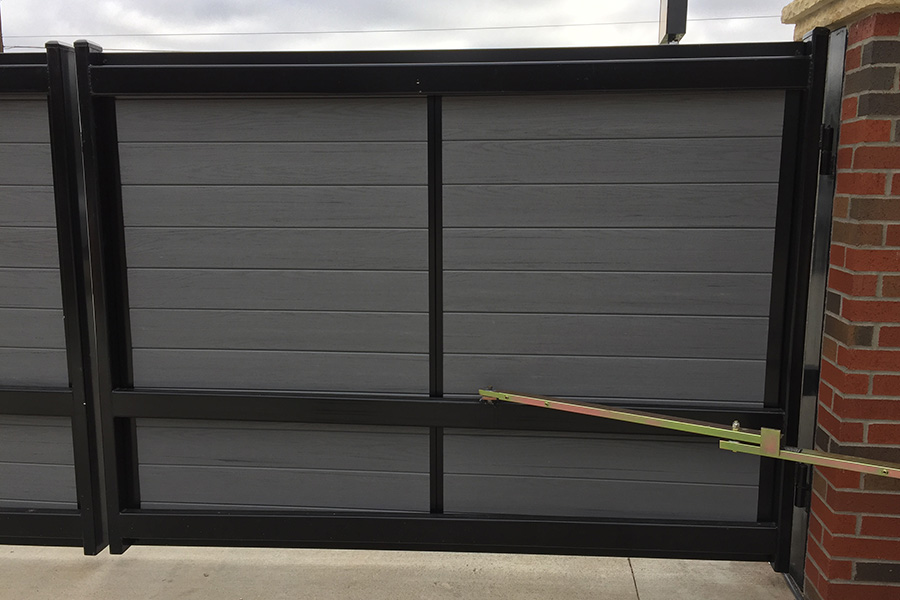

For properties exploring gate design ideas that include automation, automated gate openers can be added to FenceTrac gates by the installer. FenceTrac does not supply the opener, but the gate and post structure can accommodate aftermarket opener hardware.
Watch: FenceTrac Gate Kit Assembly
This video walks through the full assembly process for a FenceTrac gate kit, from frame layout to infill installation.
Adjusting a Standard Gate to a Narrower Width
FenceTrac standard gate kits can be adjusted to any width narrower than the kit size. The top rail and bottom rail of the gate frame are field-cut to the desired width, and the gate is reassembled at the new dimension.
This means a 4-foot gate kit can become a 3-foot gate, or a 6-foot kit can become a 5-foot gate. The installer measures the opening, cuts the horizontal rails to fit, and assembles the gate with the same hardware and infill. No custom order is required.
This is the simplest path when the opening is narrower than a standard size. The aluminum gate frame cuts cleanly with standard metal-cutting tools, and the finished gate retains the same structural integrity and infill compatibility as a full-width kit.
Custom Gate Options
For openings wider than 6 feet or projects that need non-standard heights or configurations, FenceTrac builds custom steel welded gates to specific dimensions. Custom gates are built to order for applications that rail cutting alone cannot address.
For commercial properties that need rolling, sliding, or cantilever gates, FenceTrac manufactures these as custom builds with heavier-duty posts and track systems sized for the application.
Related Questions
What is the standard width for a double FenceTrac gate? FenceTrac double gates are available in 8-foot and 12-foot standard widths. Double gates include a commercial drop rod for securing the stationary leaf.
Can I add an automated opener to a FenceTrac gate? Yes. FenceTrac does not supply the opener, but mounting brackets can be incorporated on custom gates or field-installed on standard gate kits by the installer.
See Also
Infill options for the FenceTrac modular frame for a full list of compatible infill materials. FenceTrac enclosures for gate configurations used in dumpster, utility, and equipment enclosures.
